Cement Mixing Units: The Heart of Cementing Operations

A cement mixing unit is the piece of cementing equipment that mixes cement powder, water, and additives into the slurry that you pump down the well. It's a critical component — if the cement isn't mixed properly, the cement job will fail. Bad mixing means uneven density, weak cement, gaps, and leaks. Good mixing means a strong, uniform cement sheath that seals the wellbore properly.

How Cement Mixing Units Work

Modern cement mixing units use a continuous mixing system. Here's how it works:

Cement Feed. Cement powder is fed from a bulk silo, through a screw conveyor or a pneumatic system, into the mixing hopper. The feed rate is controlled automatically, so you get the right amount of cement powder.

Water and Additives. Water is pumped into the mixer, and additives are metered in at the correct dosage. The density of the slurry is measured continuously, and the system automatically adjusts the cement powder feed rate to keep the density consistent.

Mixing Chamber. The cement powder, water, and additives are mixed in a high-shear mixing chamber. The high shear ensures that the cement powder is fully dispersed in the water, with no lumps or clumps. That's important for a uniform cement slurry.

Surge Tank. After mixing, the slurry goes into a surge tank, which acts as a buffer. The pumps draw from the surge tank, so you always have a steady supply of mixed slurry. The surge tank also lets the slurry degas — bubbles that got mixed in escape before the slurry goes down the hole.

What Makes a Good Cement Mixing Unit

A good cement mixing unit has these features:

- Accurate density control: The density of the slurry has to be consistent throughout the job. Modern units have automatic density control, with Coriolis mass flow meters that measure density very accurately.
- Good mixing quality: The mixer has to fully disperse the cement powder, with no lumps or clumps. High-shear mixers are better than low-shear mixers.
- Reliability: The mixing unit has to run continuously for hours, without breaking down. If the mixer stops, the whole cement job stops.
- Ease of cleaning: After the job, you have to clean the mixer and the piping. Cement sets hard, and if you don't clean it, it will clog everything. Good mixing units are easy to take apart and clean.
- Operator-friendly controls: The operator needs to be able to monitor and adjust the mixing process easily. Good control panels make the operator's job easier and reduce mistakes.

Types of Cement Mixing Units

There are different types of cement mixing units:

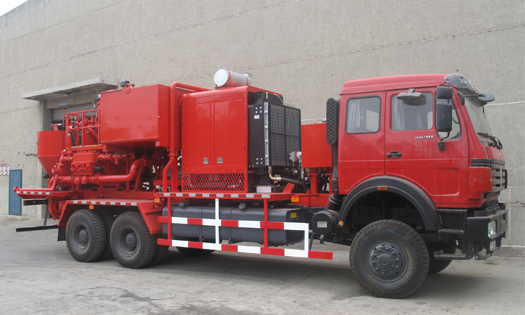

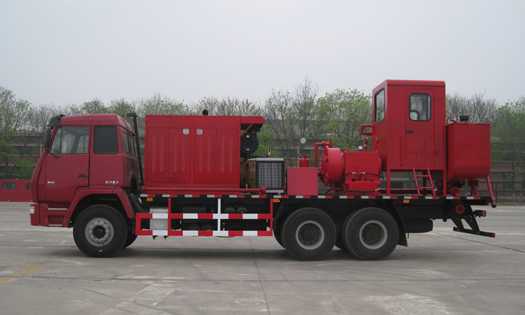

- Truck mounted mixing units: These are integrated into truck mounted cementing units. They're the most common, and they're used for most onshore cementing jobs.
- Skid mounted mixing units: These are bigger, more powerful units, used for big cementing jobs or offshore operations.
- Batch mixers: These mix a batch of cement slurry at a time, instead of continuously. They're older technology, and they're less common now. Continuous mixers are better because they give more consistent density.

FAQ

Q: How important is the mixing unit for a good cement job?
A: Very important. A bad mixing unit can ruin an otherwise good cement job. If the density is inconsistent, or the cement isn't fully mixed, the cement will be weak and uneven. That can lead to leaks, casing corrosion, and well integrity problems. A good mixing unit is essential for a successful cement job.
