ZJ40/2250J Rig

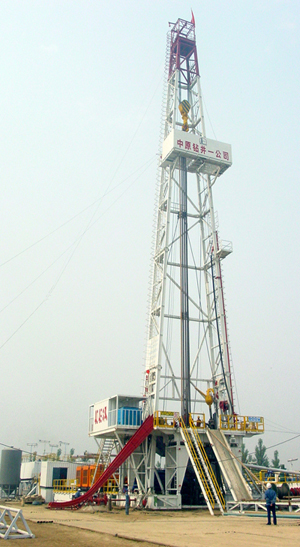

ZJ40/2250J rig adopts block substructure with K type mast, and 3 sets of PZ12V190B diesel engines to drive all devices. Main drawworks and compounding transmission set are placed on 1m high rear substructure, and the rotary table is placed on 6m high drill floor.
Belt compounding transmission device drives drawworks by chain and drives the rotary table through dynamic bevel gear box and cardan shaft, and drives mud pump by belt. The rig is the best alternative product of Daqing 130 rig.

Features

1. Substructure adopts the modular mode, and blocks connect with each other by pins, which can realize quick movement.
2. Mast is front open-face "K" type mast. The five sections of mast is tower-type integral structure, which can be installed with the crown block and transported together. The supporting leg is located at base of substructure with good stability, and it is raised and laid down by drawworks power as a whole.
3. Power is transferred through the bevel angle gearbox and the cardan shaft. The drawworks is divided, the main part of which is placed under drill floor; it adopts sealing structure with force-feed chain lubrication, pneumatic tyre gear change and drum grooving.

Applications

ZJ40/2250J Rig,Land Drilling Rig,China Drilling Rig Supplier is a heavy-duty land drilling rig built for sustained drilling operations in onshore oil fields. Its skid-mounted design makes it a popular choice for operators drilling concentrated field blocks where rig moves are infrequent and ease of assembly matters more than road mobility.

- It is typically used for drilling 2,500 to 5,000 meter production wells, depending on the horsepower rating.
- Common applications include development drilling in mature onshore basins, exploration well drilling, and workover operations on deeper wells.
- Operators in the Middle East, Russia, and Central Asia often prefer skid rigs for their lower initial cost and simpler maintenance compared to complex truck-mounted rigs.

Field-Proven Design

Our skid rigs use AC variable frequency electric drive, which simplifies the power transmission system compared to older mechanical drive rigs. This design reduces moving parts, lowers maintenance requirements, and gives the driller finer control over hook load and rotary speed.

- The control system uses common industrial PLC components that are available worldwide.
- Drawworks and rotary table components are interchangeable with common API-spec drilling rig spares.
- Optional cold-weather packages are available for rigs operating in northern climates.

Parameters of ZJ40/2250J Rig

Nominal drilling depth (114mmDP)	2500~4000m	Open diameter of rotary table	φ700mm (27.5" )
(127mmDP)	2000~3200m	Qty.× power of diesel engine	3×800kW
Max.hook load	2250kN	Shift of Drawworks	4+2R
Traveling system	5×6	Height of substructure	6m
Dia of Drill line	φ32mm	Mast type and height	Ktype, 43m
Qty.× power of mud pump	2×1300hp	Drawworks power	735kW(1000hp)
Drive type	belt compound	Mud high pressure manifold	Φ102mm(dia)×35MPa
Rotary table gears	2 shaft stepless speed regulation	Effective capacity of mud tank of solid control system	≥180m3
