The moving system for drilling rig matched equipment is mainly composed of generator room trailer and mud pump set trailer.

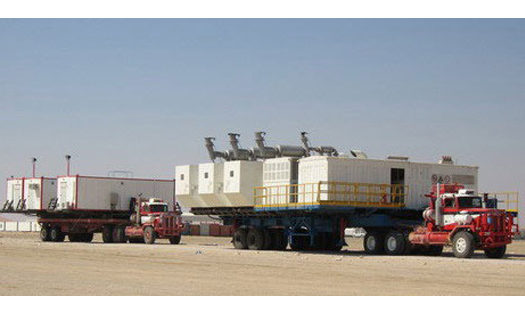

The generator room trailer is mainly used to transport the whole generator room set and can transport several generators at one time. The trailer is mainly composed of the traction pin, legs, frame, one-line and two-axle axle, brake systems, electrical systems etc.

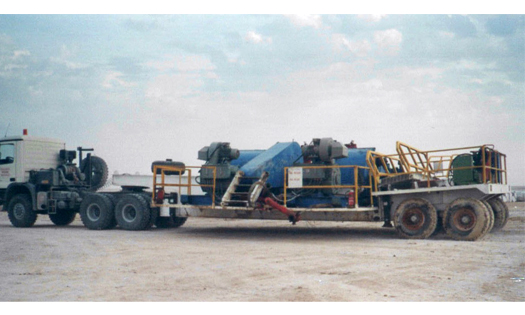

The mud pump set trailer is mainly used to transport mud pump set as a whole, and it can transport several mud trailers at one time. The trailer is mainly composed of the traction pin, legs, frame, front-line and two-axle axle, brake systems, electrical systems etc.
Features
It can make 2-6 sets of generator rooms move quickly at the same time
Applications
Moving System for Drilling Rig Matched Equipment-Generator Room Trailer,Mud Pump Set is engineered for moving of rig auxiliary equipment alongside the main rig.
- Primary use: complementary moving system for mud pumps, mud tanks, and other surface equipment that moves with the main rig.
- Built for reliable daily operation in demanding onshore oil and gas environments across the Middle East, Central Asia, Africa, and Southeast Asia.
- designed to work in sync with the main rig moving system, so the entire rig package moves as one unit.
FAQs
Q: How long does a typical rig move take with this system?
A: Most short moves between adjacent well pads can be completed in 4-8 hours, compared to days with conventional disassembly.
Q: Is this system compatible with my existing rig?
A: Most land rigs can be retrofitted with a moving system; we just need the rig dimensions and weight to design the right configuration.
Q: How many people are needed to operate the moving system?
A: A 4-person crew can operate the entire system, with one operator controlling the hydraulic power unit.
Parameters
Parameters of Generator Room Trailer
|
Performance
|
Design parameter
|
|
Max total weight of generator
room-set trailer (t)
|
80~160
|
|
Max moving capacity of Generator room
trailer
|
100~200
|
|
traction pin
model
|
3 1/2〞
|
|
Min clearance from ground (mm)
|
500
|
|
Max moving speed (km/h)
|
8km/h
|
|
Width of application road (mm)
|
6600
|
