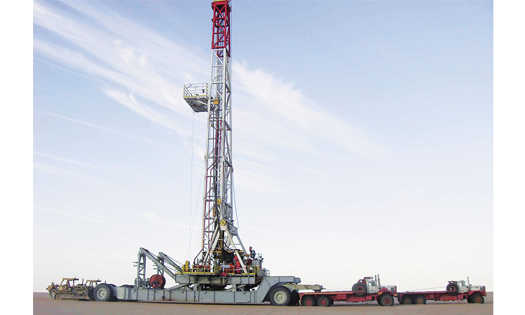

Our drilling rig moving system can transport rigs without separating the substructure and derrick.
Land rig moving system is equipped with a hydraulic raising system, traction device, traction axle and bearing axle of substructure.
The use of the drilling rig moving system can greatly reduce using truck times during drilling rig movement, saving time and cost and improving the working efficiency. It is the ideal equipment to move rigs.
Features
This land rig moving system can transport rigs without separating the substructure and derrick.
Applications
Land Rig Moving System,Drilling Rig Moving System,China Rig Mover Supplier is engineered for rapid rig moves for entire land drilling rigs between well pads.
- Primary use: hydraulic jack and track moving system that allows a complete drilling rig to be moved short distances without disassembly.
- Built for reliable daily operation in demanding onshore oil and gas environments across the Middle East, Central Asia, Africa, and Southeast Asia.
- used by drilling contractors to cut rig move time from days to hours, reducing non-productive time on location.
FAQs
Q: How long does a typical rig move take with this system?
A: Most short moves between adjacent well pads can be completed in 4-8 hours, compared to days with conventional disassembly.
Q: Is this system compatible with my existing rig?
A: Most land rigs can be retrofitted with a moving system; we just need the rig dimensions and weight to design the right configuration.
Q: How many people are needed to operate the moving system?
A: A 4-person crew can operate the entire system, with one operator controlling the hydraulic power unit.
Parameters
Parameters of Drilling Rig Moving System
|
Basic performance
|
Design parameter
|
|
Max total weight of drilling
rig (t)
|
300~480
|
|
Max moving capacity of drilling rig solid
moving system (t)
|
400~540
|
|
Min clearance from ground (mm)
|
600
|
|
Max moving speed (km/h)
|
8km/h
|
|
Width of application road (mm)
|
12000
|
|
Temperature of application
environment (℃)
|
-17~55
|
