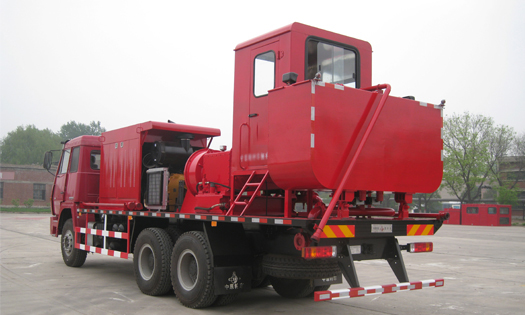

Based on the second-class chassis, the truck-mounted cementing equipment is refitted by adding platform, engine, triplex plunger pump,
measuring cabinet, gas-liquid system, control system and other special equipments.
This truck-mounted cementing unit has no auto slurry-mixing system.
The cementing truck is mainly used for
well-cementing and well-flushing of oil field.
It is called mechanical cementing truck
when being equipped with mechanical transmission box.
The truck-mounted cementing unit is called
hydraulic cementing truck when equipped with hydraulic transmission box. The
optional chassis: Shanqi (6×4), Beiben (6×6).
Features
1, High pressure, large displacement, high efficiency, safety and reliable.
2. The truck-mounted cementing unit is safe and easy to operate the control system and this cementing truck meets the requirement of oil field operation.
3. Displacement measuring system, operating room and 30m wired remote control are optional.
Parameters
Parameters of Truck-mounted Cementing Equipment
|
Performance parameter
|
400 type cementing truck
|
700 type cementing truck
|
|
Hydraulic
|
Mechanical
|
Hydraulic
|
Mechanical
|
|
Max.
pressure MPa
|
40
|
40
|
70
|
70
|
|
Max.
displacement m3/h
|
100
|
71.8
|
60
|
84
|
